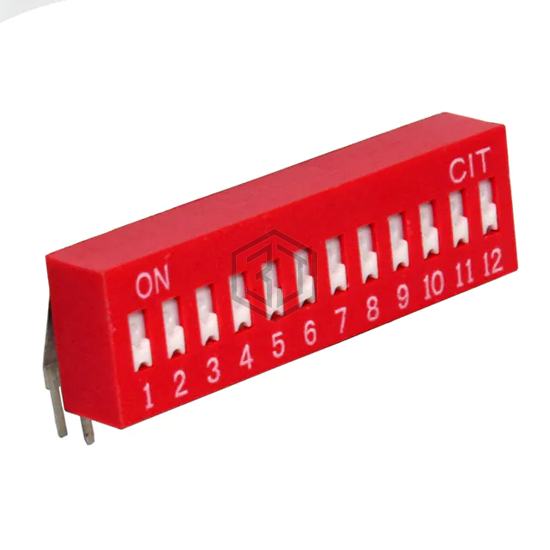

DIP SWITCH DPST 12 POSITION THRO
KR12RT is a DIP Switches manufactured by CIT Relay and Switch. DIP SWITCH DPST 12 POSITION THRO. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 85°C, voltage rating 24VDC, contact material Phosphor Bronze.
In Stock: 1,252
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST |
| Number of Positions | 12 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Height Above Board | 0.378" (9.60mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for KR12RT and get a quote within 24 hours.
