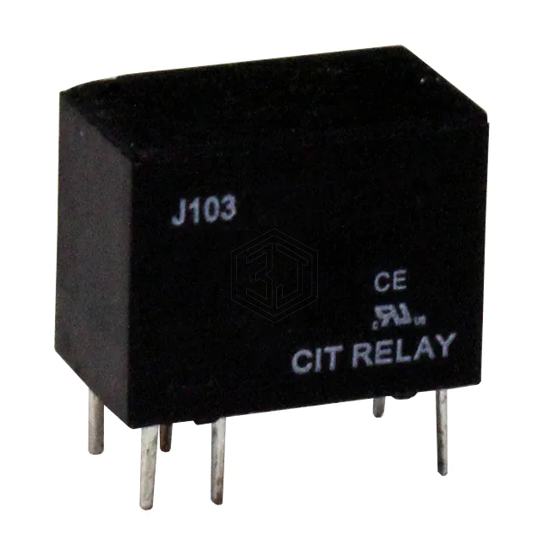

RELAY UL APPROVED GEN PURPOSE SP
J1031C5VDC.15S is a Signal Relays, Up to 2 Amps manufactured by CIT Relay and Switch. RELAY UL APPROVED GEN PURPOSE SP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Silver (Ag), Gold (Au), termination style PC Pin.
In Stock: 417
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 125VAC, 60VDC - Max |
| Coil Current | 29.9 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 4.5 ms |
| Release Time | 1.5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Relay Type | General Purpose |
Submit your RFQ for J1031C5VDC.15S and get a quote within 24 hours.
