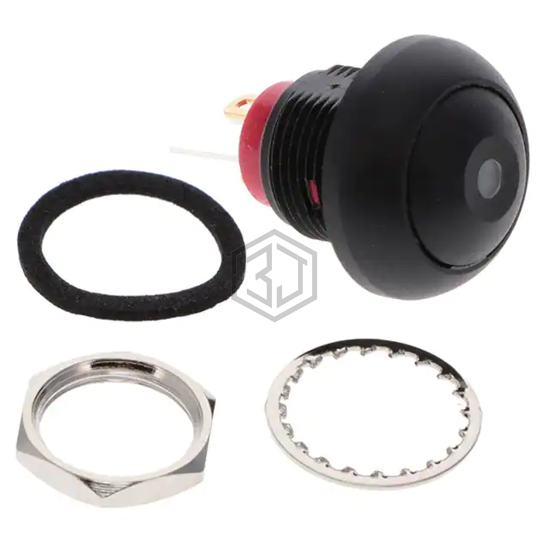

PB, SPST, MOM, BLACK MATTE FINIS
ESANML2GBR is a Pushbutton Switches manufactured by CIT Relay and Switch. PB, SPST, MOM, BLACK MATTE FINIS. Key specifications: mounting type Panel Mount, Front, operating temperature -30°C ~ 85°C, voltage rating - dc 50 V, current rating (amps) 125mA (AC/DC).
In Stock: 62
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Standard, Illuminated |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 125mA (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 50 V |
| Actuator Type | Round, Button |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Black |
| Illumination Type, Color | LED, Red |
| Illumination Voltage (Nominal) | 2.1 VDC |
| Termination Style | Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Panel Cutout Dimensions | Circular - 13.60mm Dia |
| Operating Temperature | -30°C ~ 85°C |
Submit your RFQ for ESANML2GBR and get a quote within 24 hours.
