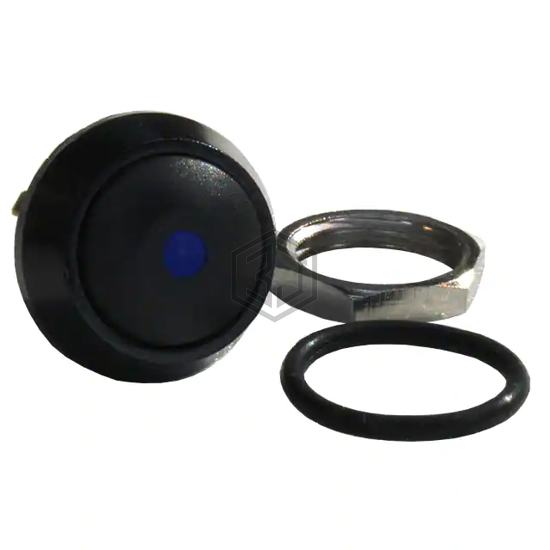

IP67 ANTI-VANDAL SWITCH, 12MM, S
EH12NLB2BB is a Pushbutton Switches manufactured by CIT Relay and Switch. IP67 ANTI-VANDAL SWITCH, 12MM, S. Key specifications: mounting type Panel Mount, Front, operating temperature -20°C ~ 70°C, voltage rating - dc 48 V, current rating (amps) 2A (DC).
In Stock: 427
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal, Illuminated |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 2A (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 48 V |
| Actuator Type | Round, Button |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Black |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 3.3 VDC |
| Termination Style | Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Panel Cutout Dimensions | Circular - 12.00mm Dia |
| Operating Temperature | -20°C ~ 70°C |
Submit your RFQ for EH12NLB2BB and get a quote within 24 hours.
