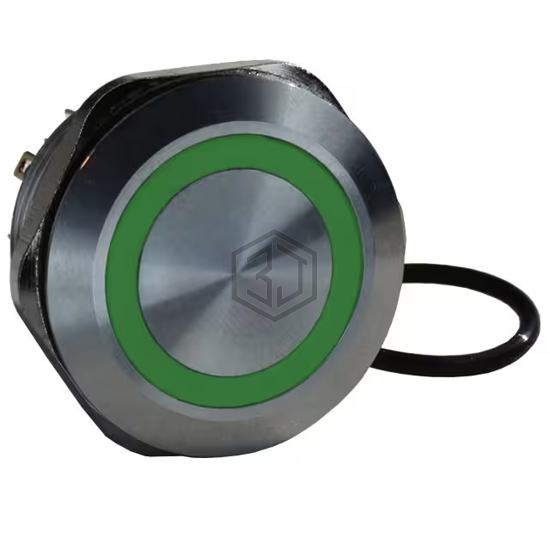

ILLUMINATED, IP67 ANTI-VANDAL SW
DH281NBSG12 is a Pushbutton Switches manufactured by CIT Relay and Switch. ILLUMINATED, IP67 ANTI-VANDAL SW. Key specifications: mounting type Panel Mount, Front, operating temperature -25°C ~ 70°C, voltage rating - dc 24 V, current rating (amps) 2A (AC/DC).
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal, Illuminated |
| Circuit | DPST-NO/NC |
| Switch Function | On-Mom, Off-Mom |
| Current Rating (Amps) | 2A (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 12 VDC |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Panel Cutout Dimensions | Circular - 28.00mm Dia |
| Operating Temperature | -25°C ~ 70°C |
Submit your RFQ for DH281NBSG12 and get a quote within 24 hours.
