RIGHT ANGLE THROUGH-HOLE PC PIN

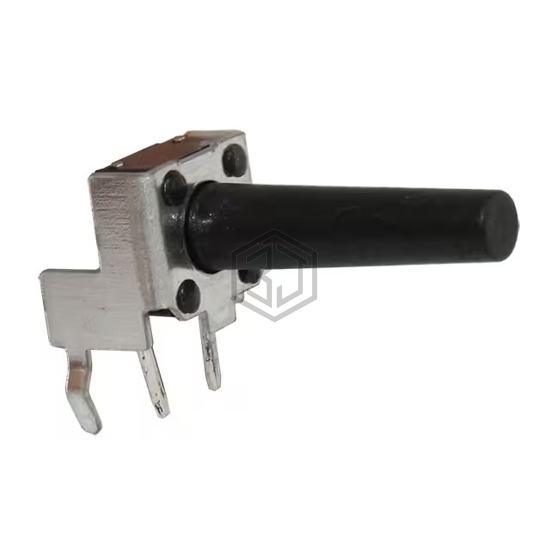

CT1102V15.85F100 is a Tactile Switches manufactured by CIT Relay and Switch. RIGHT ANGLE THROUGH-HOLE PC PIN. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 85°C, termination style PC Pin, circuit SPST-NO.
In Stock: 8,305
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 50VDC |
| Actuator Type | Plunger for Cap |
| Mounting Type | Through Hole, Right Angle |
| Actuator Height off PCB, Vertical | - |
| Actuator Length, Right Angle | 15.85mm |
| Actuator Orientation | Side Actuated |
| Termination Style | PC Pin |
| Outline | 7.50mm x 6.30mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 100gf |
| Ingress Protection | - |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for CT1102V15.85F100 and get a quote within 24 hours.
