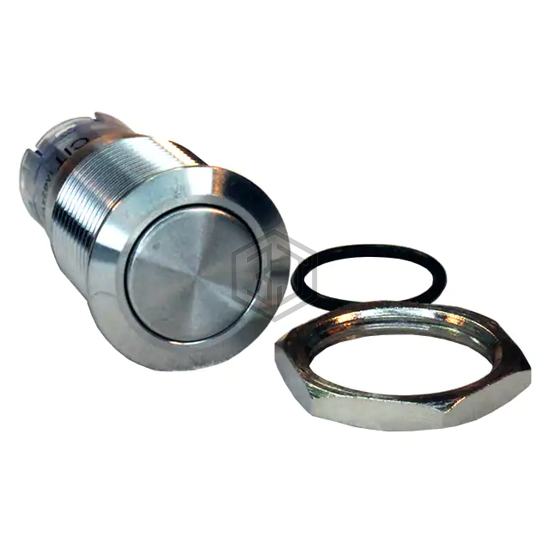

IP67 ANTI-VANDAL SWITCH, 16MM, S
CH1NASS is a Pushbutton Switches manufactured by CIT Relay and Switch. IP67 ANTI-VANDAL SWITCH, 16MM, S. Key specifications: mounting type Panel Mount, Front, operating temperature -25°C ~ 70°C, voltage rating - dc 24 V, current rating (amps) 1A (AC/DC).
In Stock: 365
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 1A (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Operating Temperature | -25°C ~ 70°C |
Submit your RFQ for CH1NASS and get a quote within 24 hours.
