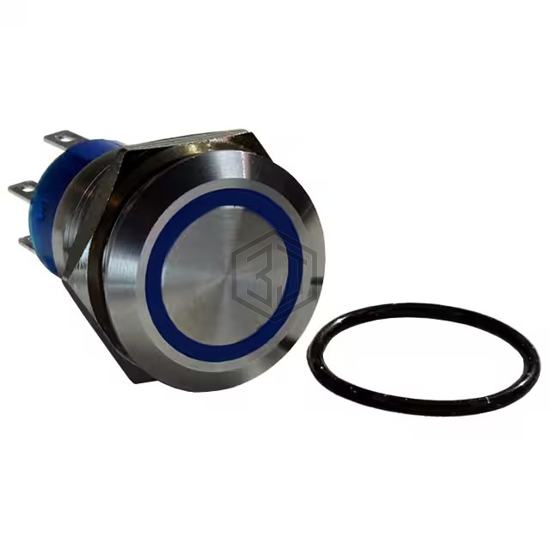

SWITCH PB ANTI-VANDAL UL, 19MM,
AHU2LBSB12 is a Pushbutton Switches manufactured by CIT Relay and Switch. SWITCH PB ANTI-VANDAL UL, 19MM,. Key specifications: mounting type Panel Mount, Front, operating temperature -20°C ~ 65°C, voltage rating - ac 125 V, current rating (amps) 3A (AC).
In Stock: 42
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal, Illuminated |
| Circuit | DPDT |
| Switch Function | On-On |
| Current Rating (Amps) | 3A (AC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | - |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 12 VDC |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Panel Cutout Dimensions | Circular - 19.00mm Dia |
| Operating Temperature | -20°C ~ 65°C |
Submit your RFQ for AHU2LBSB12 and get a quote within 24 hours.
