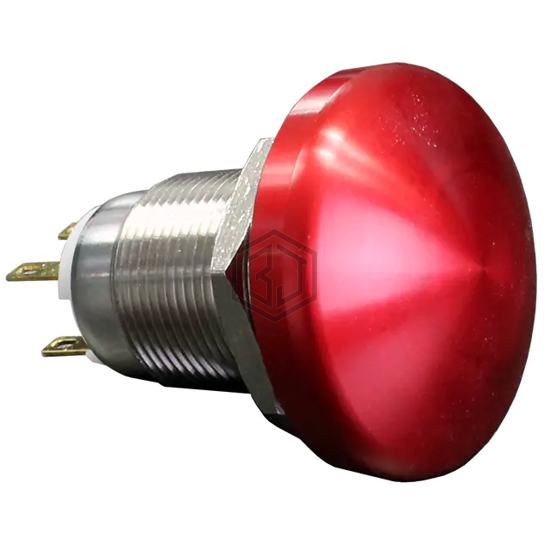

SWITCH PB ANTI-VANDAL IP67 SPST
AH1NMRSX is a Pushbutton Switches manufactured by CIT Relay and Switch. SWITCH PB ANTI-VANDAL IP67 SPST. Key specifications: mounting type Panel Mount, Front, operating temperature -25°C ~ 70°C, voltage rating - dc 24 V, current rating (amps) 1A (AC/DC).
In Stock: 205
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal |
| Circuit | DPST-NO/NC |
| Switch Function | On-Mom, Off-Mom |
| Current Rating (Amps) | 1A (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
| Actuator Type | Round, Button, Mushroom |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Red |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Panel Cutout Dimensions | Circular - 19.00mm Dia |
| Operating Temperature | -25°C ~ 70°C |
