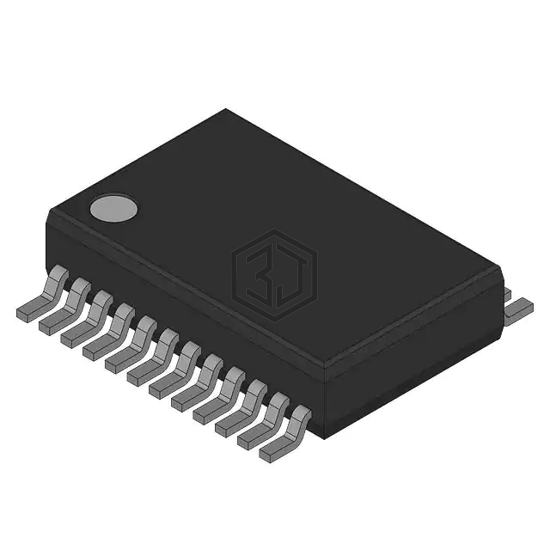

24-BIT ADC WITH AMPLIFIER
CS5534-AS is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Cirrus Logic Inc.. 24-BIT ADC WITH AMPLIFIER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 4.75V ~ 5.25V, package / case 24-SSOP (0.209", 5.30mm Width).
In Stock: 7,092
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 3.84k |
| Number of Inputs | 4 |
| Input Type | Differential |
| Data Interface | MICROWIRE™, Serial, SPI™ |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Features | PGA, Selectable Address |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 24-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 24-SSOP |
| Mounting Type | Surface Mount |
