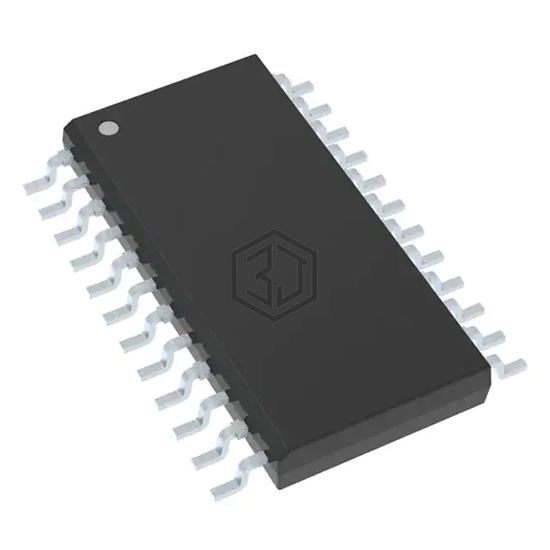

IC ADC 20BIT SIGMA-DELTA 24SOIC
CS5506-BSZ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Cirrus Logic Inc.. IC ADC 20BIT SIGMA-DELTA 24SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3.15V ~ 5.5V, package / case 24-SOIC (0.295", 7.50mm Width).
In Stock: 2,034
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 20 |
| Sampling Rate (Per Second) | 100 |
| Number of Inputs | 4 |
| Input Type | Pseudo-Differential |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 3.15V ~ 5.5V |
| Features | Selectable Address |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Mounting Type | Surface Mount |
CS5506-BSZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADS1119IPWR | Texas Instruments | IC ADC 16BIT SIGMA-DELTA 16TSSOP | 92% | View |
| AD7124-4TRUZ-EP-R7 | Analog Devices Inc. | IC ADC 24BIT SIGMA-DELTA 24TSSOP | 87% | View |
| AD7865BSZ-1REEL | Analog Devices Inc. | IC ADC 14BIT SAR 44MQFP | 87% | View |
| AD7825BRUZ-REEL7 | Analog Devices Inc. | IC ADC 8BIT PIPELINED 24TSSOP | 83% | View |
| AD7866ARUZ-REEL | Analog Devices Inc. | IC ADC 12BIT SAR 20TSSOP | 79% | View |
| AD7863BRZ-10 | Analog Devices Inc. | IC ADC 14BIT SAR 28SOIC | 77% | View |
Submit your RFQ for CS5506-BSZ and get a quote within 24 hours.
