DC DC CONVERTER +/-12V 75W

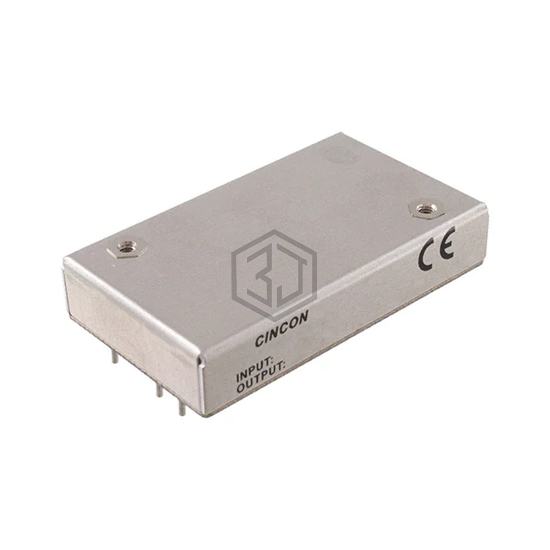

ECLB75W-24D12 is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC DC CONVERTER +/-12V 75W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 7-DIP Module, current - output (max) 3.12A, 3.12A.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3.12A, 3.12A |
| Power (Watts) | 75 W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 91% |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 2.05" L x 1.20" W x 0.40" H (52.0mm x 30.5mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CE |
| Standard Number | 62368-1 |
Submit your RFQ for ECLB75W-24D12 and get a quote within 24 hours.
