DC DC CONVERTER +/-12V 60W

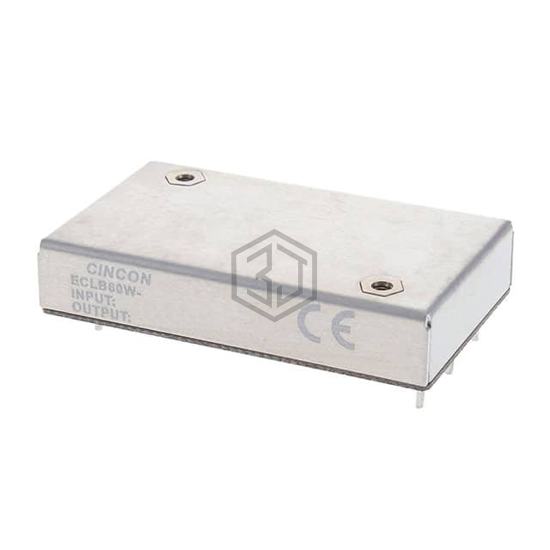

ECLB60W-48D12 is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC DC CONVERTER +/-12V 60W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 6-DIP Module, current - output (max) 2.5A, 2.5A.
In Stock: 60
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.5A, 2.5A |
| Power (Watts) | 60 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 91% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.05" L x 1.20" W x 0.40" H (52.0mm x 30.5mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CE |
| Standard Number | 60950-1 |
