DC-DC CONV

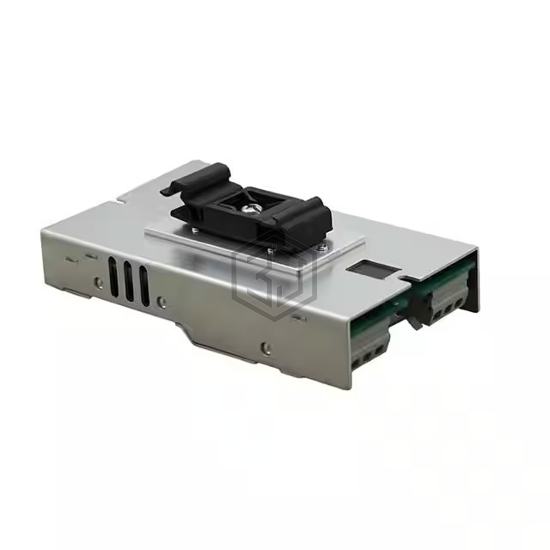

EC7BW18-72D24-EDRT is a Industrial, DIN Rail Power Supplies manufactured by Cincon Electronics Co. LTD. DC-DC CONV. Key specifications: operating temperature -40°C ~ 100°C (With Derating), current - output (max) 417mA, 417mA, size / dimension 2.33" L x 1.43" W x 4.45" H (59.2mm x 36.4mm x 113.0mm), number of outputs 2.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 2 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 10V |
| DC Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | -24V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 417mA, 417mA |
| Power (Watts) | 20W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 88% |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Features | Remote On/Off |
| Size / Dimension | 2.33" L x 1.43" W x 4.45" H (59.2mm x 36.4mm x 113.0mm) |
| Approval Agency | CE |
| Standard Number | 50155; 62368-1 |
Submit your RFQ for EC7BW18-72D24-EDRT and get a quote within 24 hours.
