DC DC CONVERTER 5V 8W

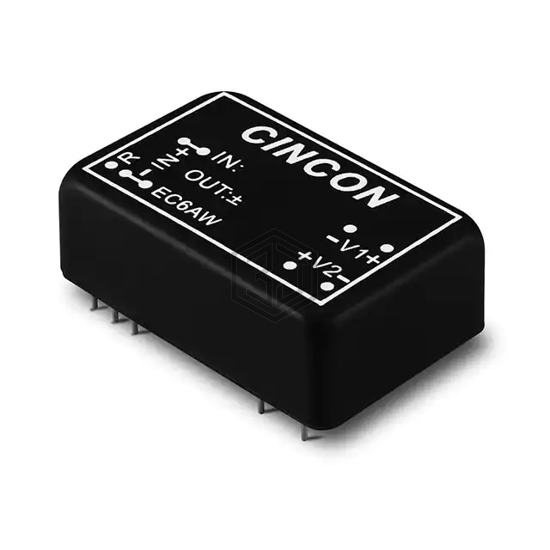

EC6AW-48S05 is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC DC CONVERTER 5V 8W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 24-DIP Module, 9 Leads, current - output (max) 1.6A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.6A |
| Power (Watts) | 8 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial), Railway |
| Features | Remote On/Off, OCP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 83% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 9 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CE |
| Standard Number | 50155; 60950-1 |
Submit your RFQ for EC6AW-48S05 and get a quote within 24 hours.
