DC DC CONVERTER 3.3V 5W

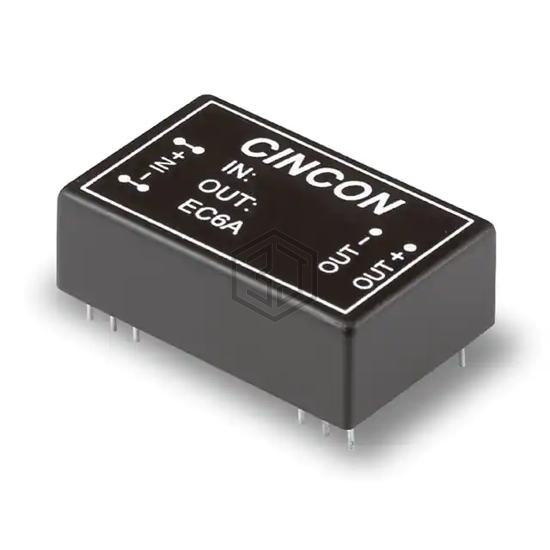

EC6A07 is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC DC CONVERTER 3.3V 5W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C (With Derating), package / case 24-DIP Module, 14 Leads, current - output (max) 1.5A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.5A |
| Power (Watts) | 5 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 78% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 14 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1 |
