DC DC CONVERTER 3.3V 25W

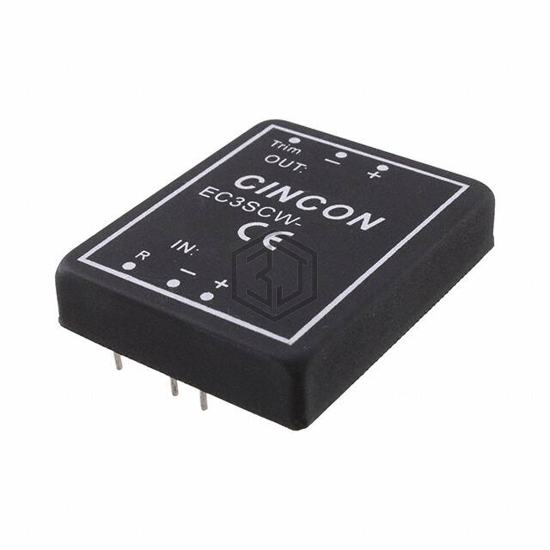

EC3SCW-24S3V3 is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC DC CONVERTER 3.3V 25W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 8-DIP Module, 7 Leads, current - output (max) 7.5A.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 7.5A |
| Power (Watts) | 25 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 88% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 7 Leads |
| Size / Dimension | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CE |
| Standard Number | 60950-1 |
Submit your RFQ for EC3SCW-24S3V3 and get a quote within 24 hours.
