DC DC CONVERTER +/-12V 3W

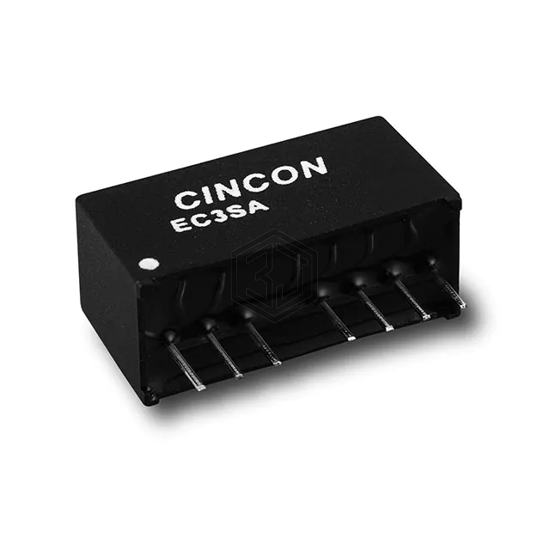

EC3SA-24D12N is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC DC CONVERTER +/-12V 3W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 8-SIP Module, 7 Leads, current - output (max) 125mA, 125mA.
In Stock: 47
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 125mA, 125mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 84% |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 60950-1 |
Submit your RFQ for EC3SA-24D12N and get a quote within 24 hours.
