DC DC CONVERTER +/-5V 10W

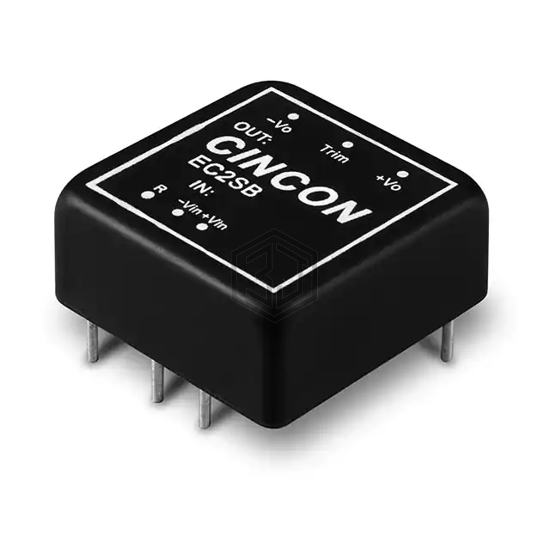

EC2SB-05D05S is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC DC CONVERTER +/-5V 10W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (With Derating), package / case 6-SMD Module, current - output (max) 1A, 1A.
In Stock: 2,566
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.7V |
| Voltage - Input (Max) | 9V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A, 1A |
| Power (Watts) | 10 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 85% |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.36" H (25.4mm x 25.4mm x 9.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 60950-1 |
Submit your RFQ for EC2SB-05D05S and get a quote within 24 hours.
