DC DC CONVERTER 15V 2W

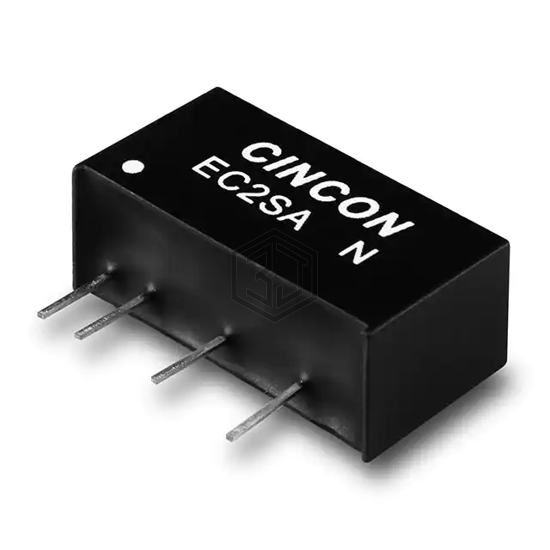

EC2SA03N is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC DC CONVERTER 15V 2W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 6-SIP Module, 5 Leads, current - output (max) 134mA.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 134mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 85% |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.2mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for EC2SA03N and get a quote within 24 hours.
