DC DC CONVERTER +/-15V 20W

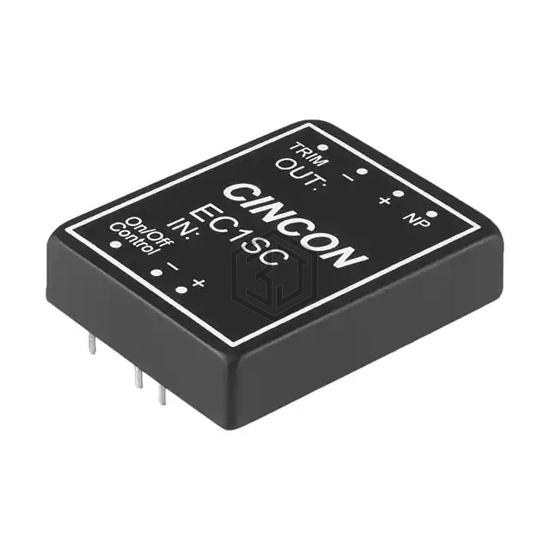

EC1SC15 is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC DC CONVERTER +/-15V 20W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 100°C (With Derating), package / case 8-DIP Module, 7 Leads, current - output (max) 666mA, 666mA.
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 72V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 666mA, 666mA |
| Power (Watts) | 20 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, SCP |
| Operating Temperature | -25°C ~ 100°C (With Derating) |
| Efficiency | 84% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 7 Leads |
| Size / Dimension | 2.00" L x 1.60" W x 0.45" H (50.8mm x 40.6mm x 11.4mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | cURus |
| Standard Number | 60950-1 |
Submit your RFQ for EC1SC15 and get a quote within 24 hours.
