DC DC CONVERTER +/-12V 1W

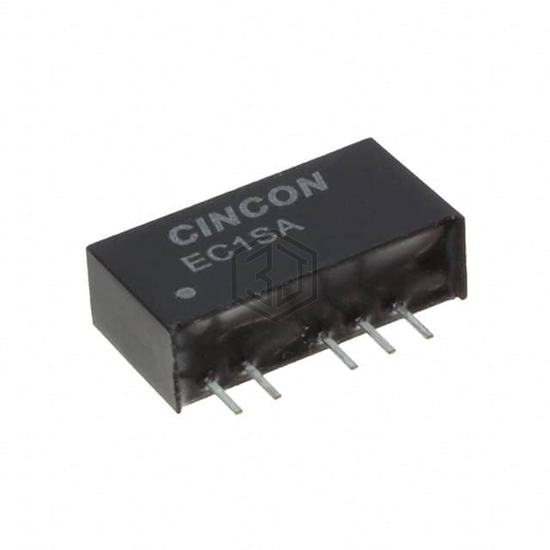

EC1SA14N is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC DC CONVERTER +/-12V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 7-SIP Module, 5 Leads, current - output (max) 42mA, 42mA.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 42mA, 42mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 80% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for EC1SA14N and get a quote within 24 hours.
