DC/DC CONVERTER 24V 75W

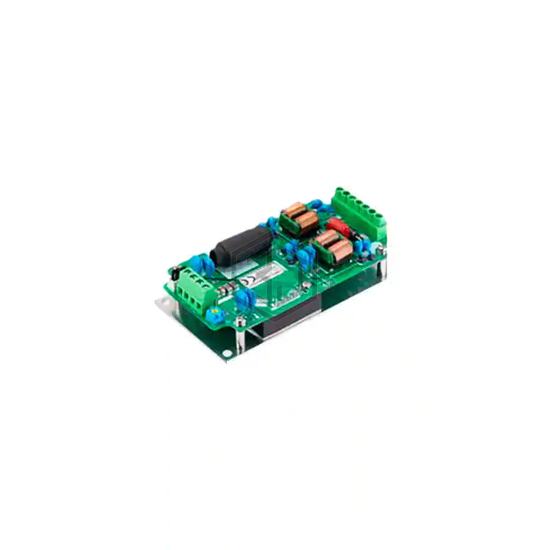

CQB75-300S24-CMFC is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC/DC CONVERTER 24V 75W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C (With Derating), current - output (max) 3.12A, size / dimension 4.60" L x 2.40" W x 1.24" H (116.8mm x 61.0mm x 31.4mm).
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Voltage - Input (Min) | 180V |
| Voltage - Input (Max) | 450V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3.12A |
| Power (Watts) | 75W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.60" L x 2.40" W x 1.24" H (116.8mm x 61.0mm x 31.4mm) |
| Approval Agency | CE |
| Standard Number | 62368-1 |
Submit your RFQ for CQB75-300S24-CMFC and get a quote within 24 hours.
