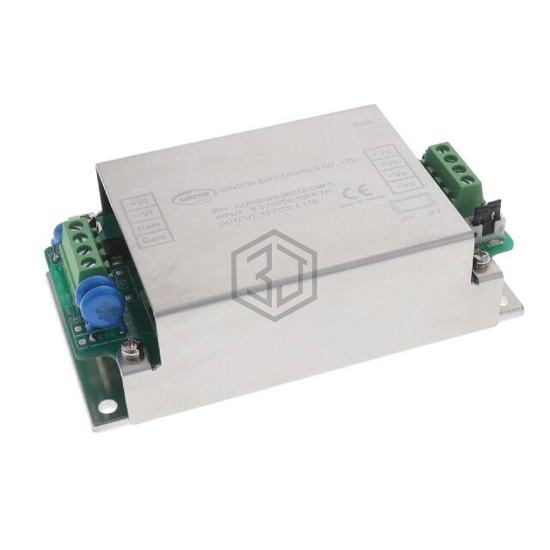

DC/DC CONVERTER 12V 50W
CQB50W8-36S12-CMFD is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC/DC CONVERTER 12V 50W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C (With Derating), current - output (max) 4.17A, size / dimension 4.60" L x 2.49" W x 1.46" H (116.8mm x 63.4mm x 37.0mm).
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 9.5V |
| Voltage - Input (Max) | 75V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4.17A |
| Power (Watts) | 50W |
| Voltage - Isolation | 4.2 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 90% |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.60" L x 2.49" W x 1.46" H (116.8mm x 63.4mm x 37.0mm) |
| Approval Agency | CE |
| Standard Number | 50155; 62368-1 |
Submit your RFQ for CQB50W8-36S12-CMFD and get a quote within 24 hours.
