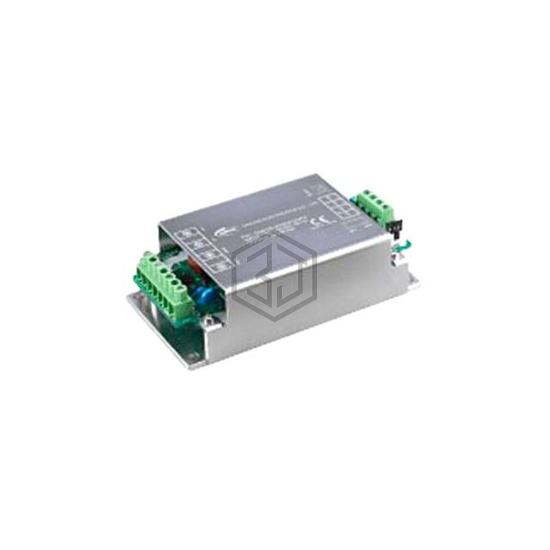

DC/DC CONVERTER 5V 150W
CQB150-300S05-CMFC is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC/DC CONVERTER 5V 150W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 100°C (With Derating), current - output (max) 30A, size / dimension 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.2mm x 34.3mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 180V |
| Voltage - Input (Max) | 425V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 30A |
| Power (Watts) | 150W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 85.5% |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.2mm x 34.3mm) |
| Approval Agency | CE |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for CQB150-300S05-CMFC and get a quote within 24 hours.
