DC/DC CONVERTER 28V 101W

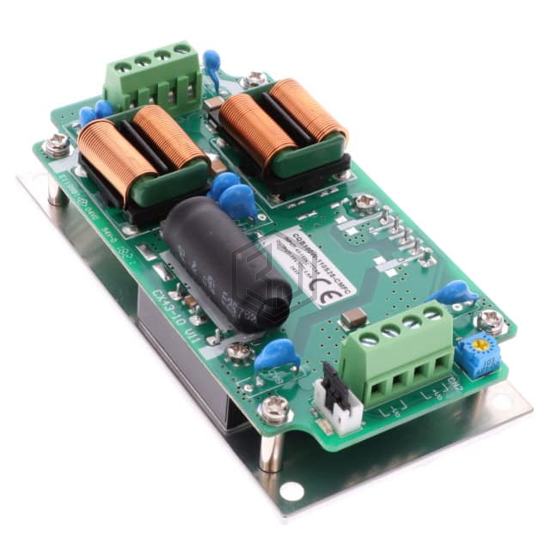

CQB100W-110S28-CMFC is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC/DC CONVERTER 28V 101W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 100°C, current - output (max) 3.6A, size / dimension 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Voltage - Input (Min) | 43V |
| Voltage - Input (Max) | 160V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3.6A |
| Power (Watts) | 101W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 88% |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) |
| Approval Agency | CE |
| Standard Number | 50155; 60950-1; 62368-1 |
Submit your RFQ for CQB100W-110S28-CMFC and get a quote within 24 hours.
