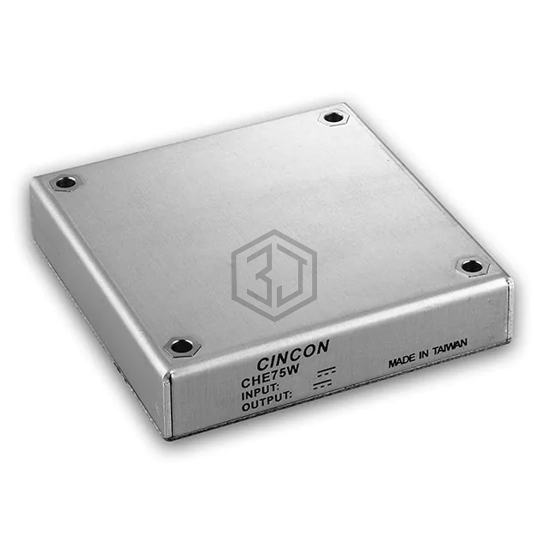

DC DC CONVERTER 12V 75W
CHE75W-48S12 is a DC DC Converters manufactured by Cincon Electronics Co. LTD. DC DC CONVERTER 12V 75W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case Half Brick, current - output (max) 6.25A.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6.25A |
| Power (Watts) | 75 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 92% |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Supplier Device Package | Half Brick |
| Control Features | Enable, Active High |
| Approval Agency | CE |
| Standard Number | 60950-1 |
Submit your RFQ for CHE75W-48S12 and get a quote within 24 hours.
