ISOLATED DC/DC CONVERTERS DC-DC

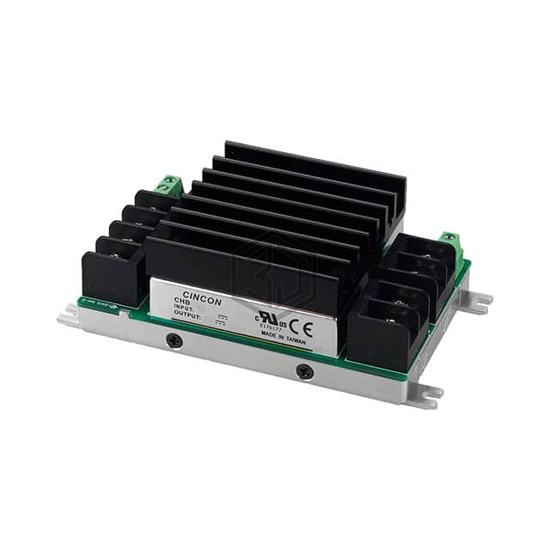

CHB75W-24S15-DIN is a Industrial, DIN Rail Power Supplies manufactured by Cincon Electronics Co. LTD. ISOLATED DC/DC CONVERTERS DC-DC. Key specifications: operating temperature -40°C ~ 100°C (With Derating), current - output (max) 5A, size / dimension 3.98" L x 2.54" W x 1.03" H (101.2mm x 64.6mm x 26.2mm), number of outputs 1.
In Stock: 6,604
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 9V |
| DC Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 75W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Efficiency | 84% |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Size / Dimension | 3.98" L x 2.54" W x 1.03" H (101.2mm x 64.6mm x 26.2mm) |
| Approval Agency | CE, cURus |
| Standard Number | - |
Submit your RFQ for CHB75W-24S15-DIN and get a quote within 24 hours.
