AC/DC CONVERTER 15V 80W

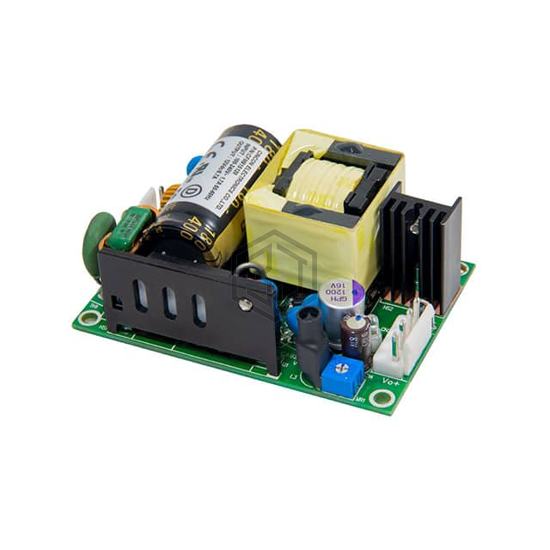

CFM81S150 is a AC DC Converters manufactured by Cincon Electronics Co. LTD. AC/DC CONVERTER 15V 80W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 85°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 3.00" L x 2.22" W x 1.34" H (76.2mm x 56.4mm x 34.0mm).
In Stock: 39
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5.36 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 80W |
| Applications | Household Appliances |
| Voltage - Isolation | 3 kV |
| Efficiency | 89% |
| Operating Temperature | -30°C ~ 85°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 2.22" W x 1.34" H (76.2mm x 56.4mm x 34.0mm) |
| Approval Agency | - |
| Standard Number | 60335-1 |
Submit your RFQ for CFM81S150 and get a quote within 24 hours.
