AC/DC CONVERTER 48V 50W

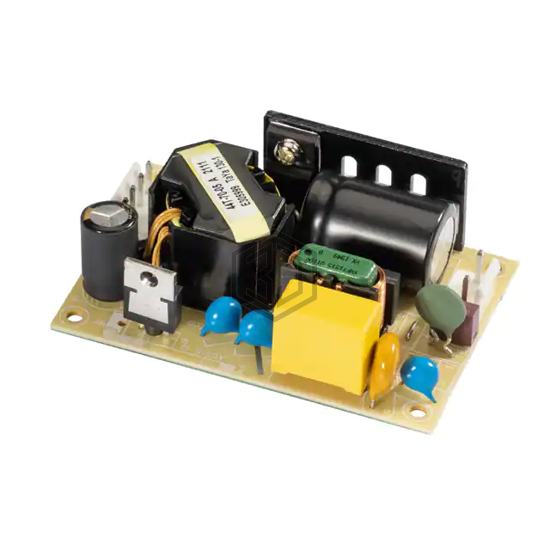

CFM50S480 is a AC DC Converters manufactured by Cincon Electronics Co. LTD. AC/DC CONVERTER 48V 50W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 80°C (With Derating), voltage - input 90 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 3.00" L x 2.00" W x 1.07" H (76.2mm x 50.8mm x 27.1mm).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 1.04 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 50W |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 89% |
| Operating Temperature | -30°C ~ 80°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 2.00" W x 1.07" H (76.2mm x 50.8mm x 27.1mm) |
| Approval Agency | CE, cURus, FCC |
| Standard Number | 60335-1; 62368-1 |
Submit your RFQ for CFM50S480 and get a quote within 24 hours.
