AC/DC CONVERTER 12V 250W

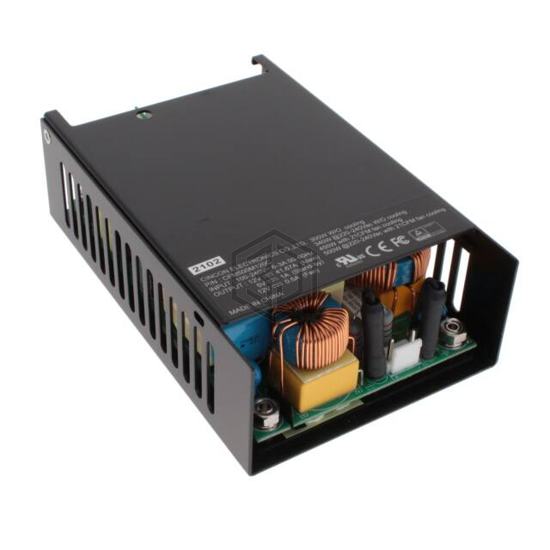

CFM500M120C is a AC DC Converters manufactured by Cincon Electronics Co. LTD. AC/DC CONVERTER 12V 250W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 85°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 20.83 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 250W (500W Forced Air) |
| Applications | Household Appliances, Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 91.5% |
| Operating Temperature | -30°C ~ 85°C (With Derating) |
| Features | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
| Approval Agency | ANSI/AAMI, ES, IEC |
| Standard Number | 60335-1; 60601-1 |
Submit your RFQ for CFM500M120C and get a quote within 24 hours.
