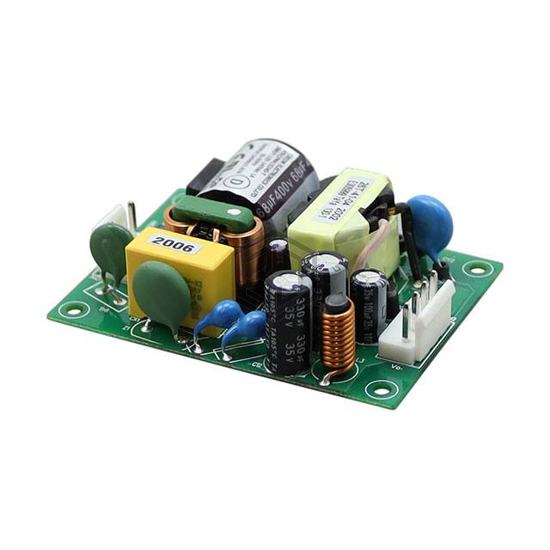

AC/DC CONVERTER 24V 40W
CFM41S240-T is a AC DC Converters manufactured by Cincon Electronics Co. LTD. AC/DC CONVERTER 24V 40W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C (With Derating), voltage - input 90 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 2.70" L x 2.00" W x 0.78" H (68.6mm x 50.8mm x 19.7mm).
In Stock: 84
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 1.67 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 40W |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 90% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.70" L x 2.00" W x 0.78" H (68.6mm x 50.8mm x 19.7mm) |
| Approval Agency | CE, cURus, DEMKO, FCC |
| Standard Number | 60335-1; 62368-1 |
Submit your RFQ for CFM41S240-T and get a quote within 24 hours.
