AC/DC CONVERTER 3.3V 20W

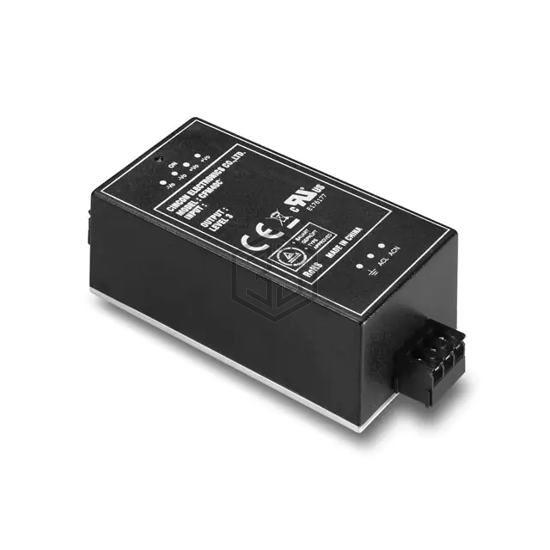

CFM40C033-DR is a Industrial, DIN Rail Power Supplies manufactured by Cincon Electronics Co. LTD. AC/DC CONVERTER 3.3V 20W. Key specifications: operating temperature 0°C ~ 70°C (With Derating), current - output (max) 6A, size / dimension 4.33" L x 2.32" W x 1.62" H (110.0mm x 59.0mm x 41.2mm), number of outputs 1.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 20W |
| Voltage - Isolation | 4.242 kV |
| Applications | ITE (Commercial) |
| Efficiency | 70% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Universal Input |
| Size / Dimension | 4.33" L x 2.32" W x 1.62" H (110.0mm x 59.0mm x 41.2mm) |
| Approval Agency | CE, cURus, FCC, TUV |
| Standard Number | - |
Submit your RFQ for CFM40C033-DR and get a quote within 24 hours.
