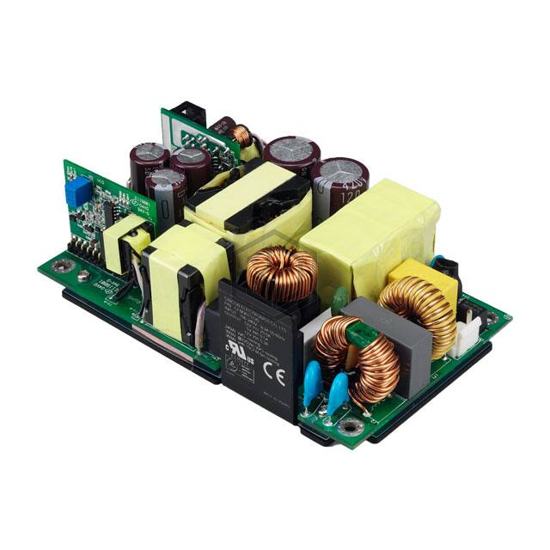

AC/DC CONVERTER 12V 355W
CFM361S120 is a AC DC Converters manufactured by Cincon Electronics Co. LTD. AC/DC CONVERTER 12V 355W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 5.00" L x 3.00" W x 1.60" H (127.0mm x 76.2mm x 40.6mm).
In Stock: 39
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 29.6 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 355W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4.242 kV |
| Efficiency | 92.5% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.60" H (127.0mm x 76.2mm x 40.6mm) |
| Approval Agency | CE, cURus, FCC, TUV |
| Standard Number | - |
Submit your RFQ for CFM361S120 and get a quote within 24 hours.
