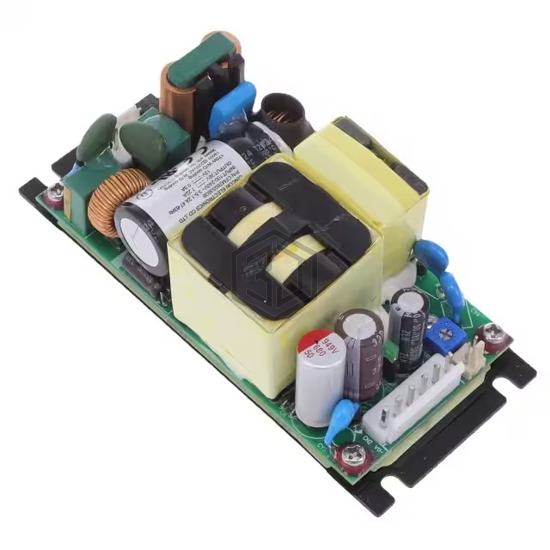

AC/DC CONVERTER 36V 260W
CFM260S360B is a AC DC Converters manufactured by Cincon Electronics Co. LTD. AC/DC CONVERTER 36V 260W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 80°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 4.60" L x 2.00" W x 1.52" H (116.8mm x 50.8mm x 38.6mm).
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 36V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 7.22 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 260W |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 93% |
| Operating Temperature | -30°C ~ 80°C (With Derating) |
| Features | Baseplate, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.60" L x 2.00" W x 1.52" H (116.8mm x 50.8mm x 38.6mm) |
| Approval Agency | - |
| Standard Number | 60335-1; 62368-1 |
