AC/DC CONVERTER 5V 20W

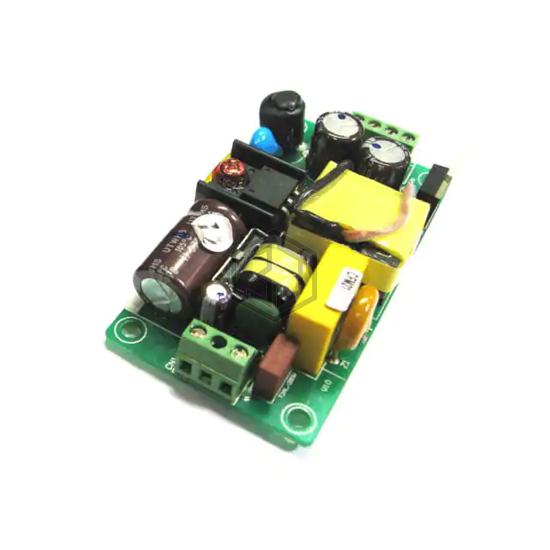

CFM21S050-S is a AC DC Converters manufactured by Cincon Electronics Co. LTD. AC/DC CONVERTER 5V 20W. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 3.00" L x 1.60" W x 0.77" H (76.2mm x 40.6mm x 19.5mm).
In Stock: 51
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 20W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 5.656 kV |
| Efficiency | 80% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 1.60" W x 0.77" H (76.2mm x 40.6mm x 19.5mm) |
| Approval Agency | CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for CFM21S050-S and get a quote within 24 hours.
