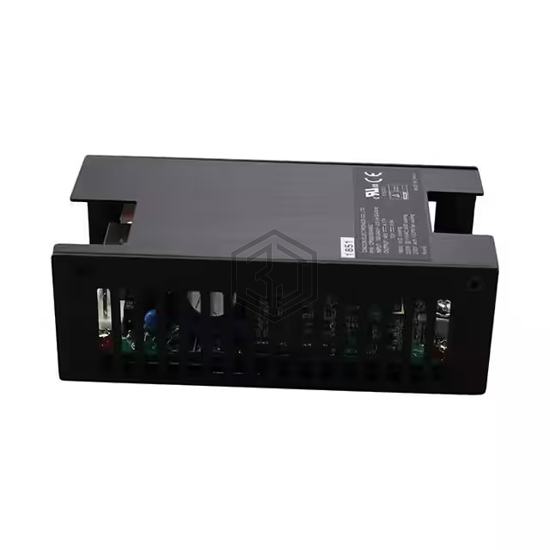

AC/DC CONVERTER 48V 200W
CFM200M480C is a AC DC Converters manufactured by Cincon Electronics Co. LTD. AC/DC CONVERTER 48V 200W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 80°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 4.61" L x 2.44" W x 1.59" H (117.0mm x 62.0mm x 40.5mm).
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4.17 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 200W |
| Applications | Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 93% |
| Operating Temperature | -20°C ~ 80°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.61" L x 2.44" W x 1.59" H (117.0mm x 62.0mm x 40.5mm) |
| Approval Agency | CE, cURus, FCC, TUV |
| Standard Number | - |
Submit your RFQ for CFM200M480C and get a quote within 24 hours.
