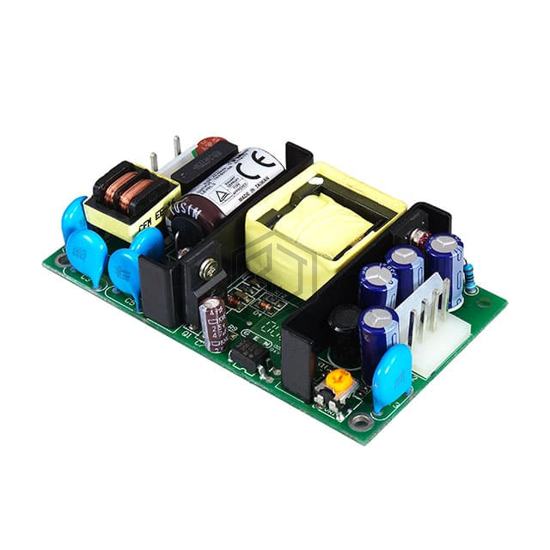

AC/DC CONVERTER 3.3V 15W
CFM2007S is a AC DC Converters manufactured by Cincon Electronics Co. LTD. AC/DC CONVERTER 3.3V 15W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 3.50" L x 2.00" W x 0.91" H (88.9mm x 50.8mm x 23.0mm).
In Stock: 65
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4.4 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 15W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4.242 kV |
| Efficiency | 66% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.50" L x 2.00" W x 0.91" H (88.9mm x 50.8mm x 23.0mm) |
| Approval Agency | CE, cURus, TUV |
| Standard Number | - |
