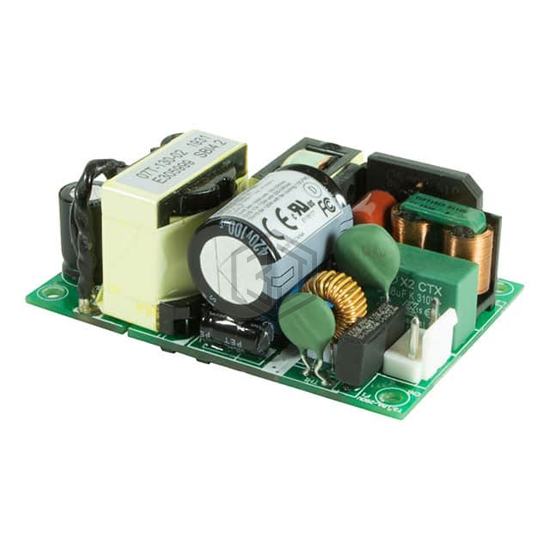

AC/DC CONVERTER 48V 101W
CFM130S480 is a AC DC Converters manufactured by Cincon Electronics Co. LTD. AC/DC CONVERTER 48V 101W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 70°C (With Derating), voltage - input 100 ~ 240 VAC, size / dimension 3.00" L x 2.00" W x 1.20" H (76.2mm x 50.8mm x 30.5mm).
In Stock: 49
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2.1 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 101W (130W Forced Air) |
| Applications | Household Appliances, ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 94% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | PFC, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 2.00" W x 1.20" H (76.2mm x 50.8mm x 30.5mm) |
| Approval Agency | CE, cURus, DEMKO, FCC |
| Standard Number | 60335-1; 60601-1; 62368-1 |
Submit your RFQ for CFM130S480 and get a quote within 24 hours.
