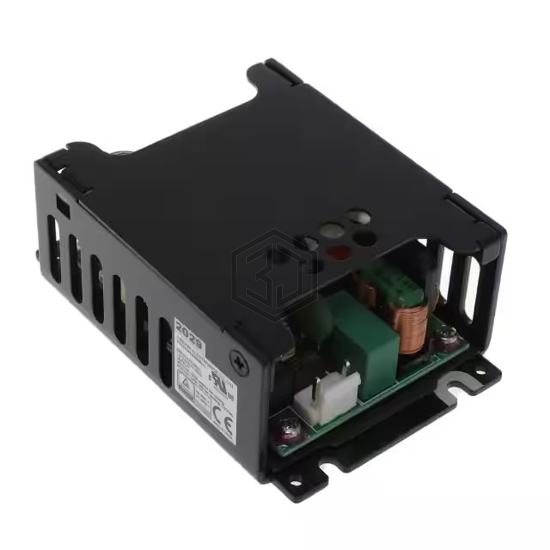

AC/DC CONVERTER 36V 101W
CFM130M360-C is a AC DC Converters manufactured by Cincon Electronics Co. LTD. AC/DC CONVERTER 36V 101W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 70°C (With Derating), voltage - input 80 ~ 264 VAC, size / dimension 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output 1 | 36V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2.8 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 101W (130W Forced Air) |
| Applications | Household Appliances, Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 94% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) |
| Approval Agency | CE, cURus, FCC, TUV |
| Standard Number | - |
Submit your RFQ for CFM130M360-C and get a quote within 24 hours.
