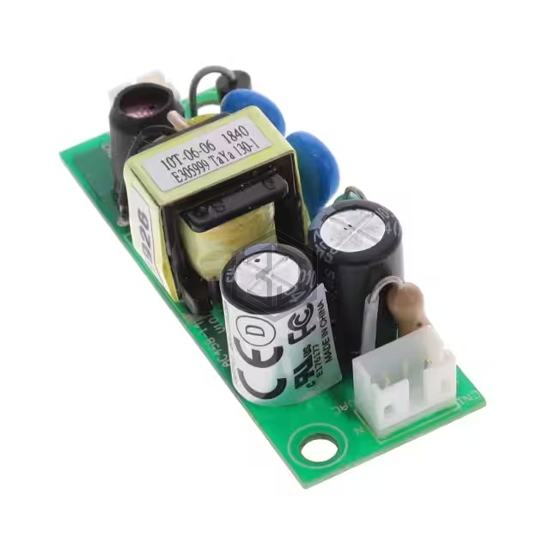

AC/DC CONVERTER 24V 6W
CFM06S240-T is a AC DC Converters manufactured by Cincon Electronics Co. LTD. AC/DC CONVERTER 24V 6W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 80°C (With Derating), voltage - input 90 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 1.95" L x 0.73" W x 0.59" H (49.5mm x 18.5mm x 15.0mm).
In Stock: 173
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 250 mA |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 6W |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 83% |
| Operating Temperature | -40°C ~ 80°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 1.95" L x 0.73" W x 0.59" H (49.5mm x 18.5mm x 15.0mm) |
| Approval Agency | CE, cURus, D-Mark, FCC |
| Standard Number | - |
Submit your RFQ for CFM06S240-T and get a quote within 24 hours.
