100 POS RCPT RED. 90 PCB CD PLTD

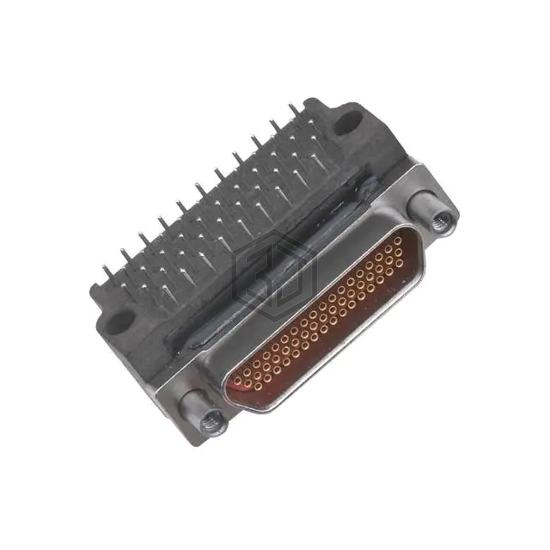

M83513/15-H01CP is a D-Sub Connectors manufactured by Cinch Connectivity Solutions. 100 POS RCPT RED. 90 PCB CD PLTD. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 3A, termination Solder, number of positions 100.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Type, Micro-D |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 100 |
| Number of Rows | 8 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Aluminum Alloy, Yellow Chromate Plated Cadmium |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Backset Spacing | 0.200" (5.08mm) |
| Features | - |
Submit your RFQ for M83513/15-H01CP and get a quote within 24 hours.
