CONN HEADER R/A 40POS 1MM

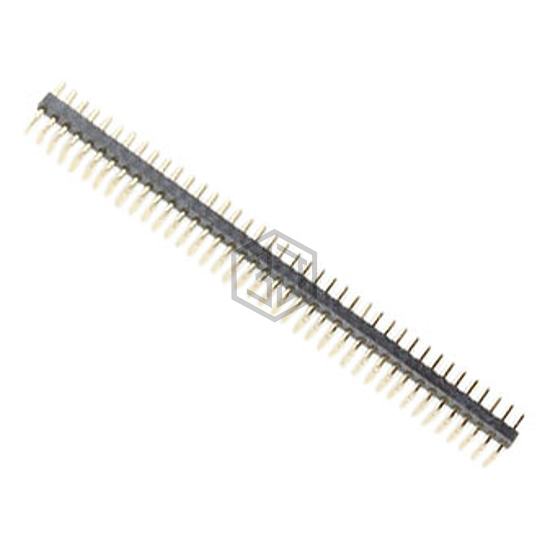

HDR100MET40M-G-RA-TH is a Rectangular Connectors - Headers, Male Pins manufactured by Chip Quik Inc.. CONN HEADER R/A 40POS 1MM. Key specifications: mounting type Through Hole, Right Angle, termination Solder, number of positions 40, connector type Header, Breakaway.
In Stock: 54
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 40 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.071" (1.80mm) |
| Contact Length - Post | 0.071" (1.80mm) |
| Overall Contact Length | - |
| Insulation Height | 0.050" (1.27mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold |
| Contact Material | - |
| Insulation Material | - |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for HDR100MET40M-G-RA-TH and get a quote within 24 hours.
