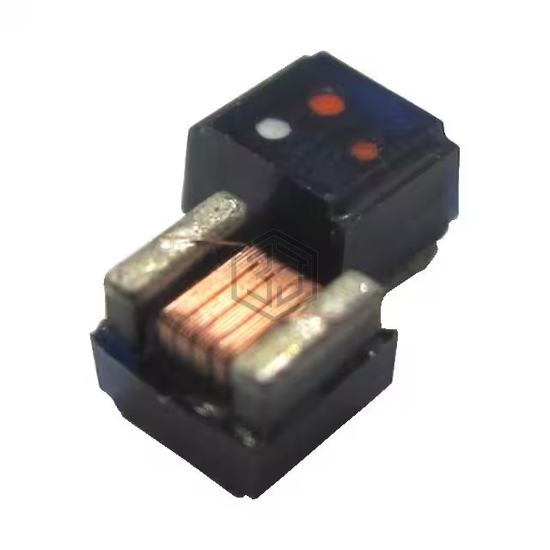

INDUCTOR RF
BWNL00241715220J00 is a Fixed Inductors manufactured by Chilisin Electronics. INDUCTOR RF. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, package / case 0805 (2012 Metric), current rating (amps) 78 mA.
In Stock: 4,999
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 78 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8Ohm Max |
| Q @ Freq | 15 @ 2.52MHz |
| Frequency - Self Resonant | 20MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.094" L x 0.068" W (2.40mm x 1.72mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
Submit your RFQ for BWNL00241715220J00 and get a quote within 24 hours.
