INDUCTOR RF

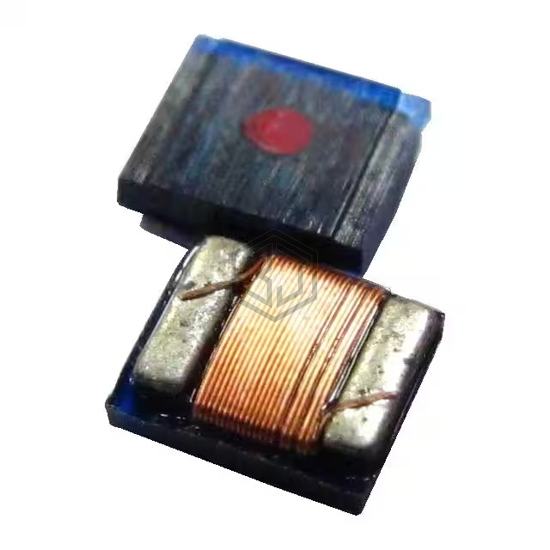

BWLT002418108R2J00 is a Fixed Inductors manufactured by Chilisin Electronics. INDUCTOR RF. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, package / case Nonstandard, size / dimension 0.094" L x 0.073" W (2.40mm x 1.85mm).
In Stock: 5,123
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 8.2 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 500mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.55Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.094" L x 0.073" W (2.40mm x 1.85mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
Submit your RFQ for BWLT002418108R2J00 and get a quote within 24 hours.
