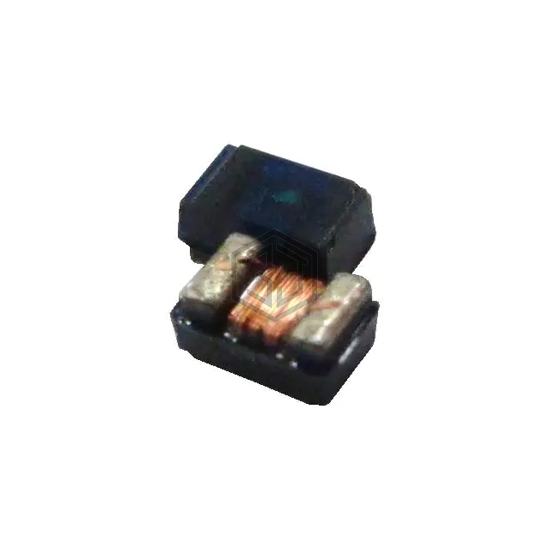

INDUCTOR RF
BWLD001810104R7K00 is a Fixed Inductors manufactured by Chilisin Electronics. INDUCTOR RF. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, size / dimension 0.071" L x 0.039" W (1.80mm x 1.00mm).
In Stock: 4,409
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 420mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 970mOhm |
| Q @ Freq | 16 @ 7.96MHz |
| Frequency - Self Resonant | 51MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.071" L x 0.039" W (1.80mm x 1.00mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
