INDUCTOR RF

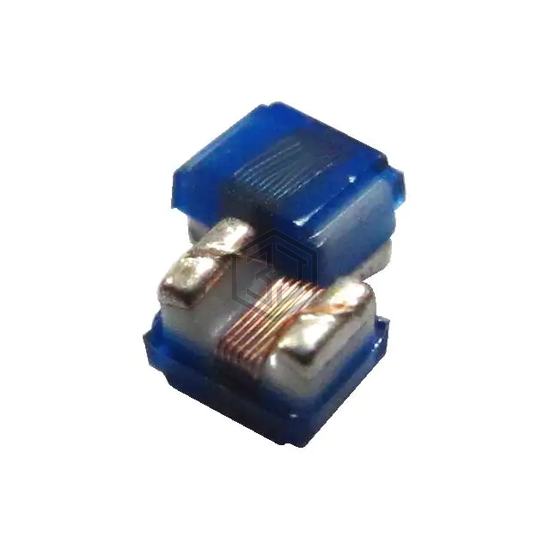

BWCM0018101028NJL8 is a Fixed Inductors manufactured by Chilisin Electronics. INDUCTOR RF. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.2 A.
In Stock: 5,016
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 28 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 98mOhm Max |
| Q @ Freq | 40 @ 250MHz |
| Frequency - Self Resonant | 3.6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.071" L x 0.039" W (1.80mm x 1.00mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
Submit your RFQ for BWCM0018101028NJL8 and get a quote within 24 hours.
