INDUCTOR RF

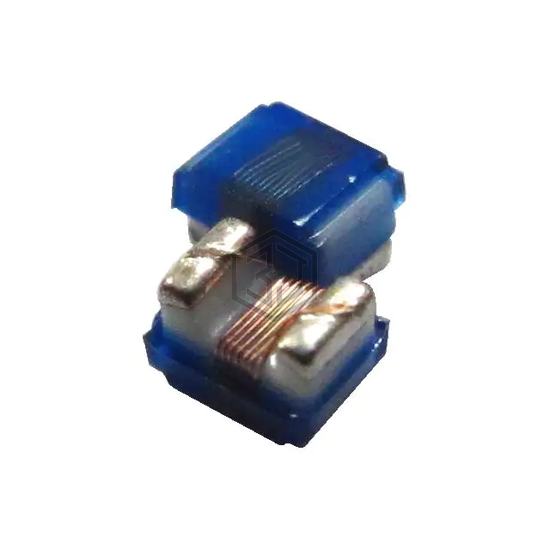

BWCM001107053N4DL8 is a Fixed Inductors manufactured by Chilisin Electronics. INDUCTOR RF. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0402 (1005 Metric), current rating (amps) 1.95 A.
In Stock: 6,207
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 3.4 nH |
| Tolerance | ±0.5nH |
| Current Rating (Amps) | 1.95 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 30mOhm Max |
| Q @ Freq | 30 @ 250MHz |
| Frequency - Self Resonant | 10GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.043" L x 0.028" W (1.10mm x 0.70mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
