INDUCTOR POWER

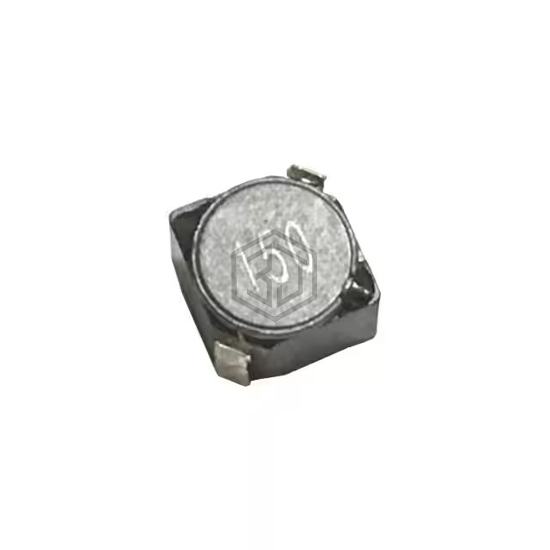

BPDS000303162R2Y00 is a Fixed Inductors manufactured by Chilisin Electronics. INDUCTOR POWER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1212 (3030 Metric), current rating (amps) 1.6 A.
In Stock: 7,462
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 1.6 A |
| Current - Saturation (Isat) | 1.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 94mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Supplier Device Package | 1212 |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.061" (1.55mm) |
