INDUCTOR RF

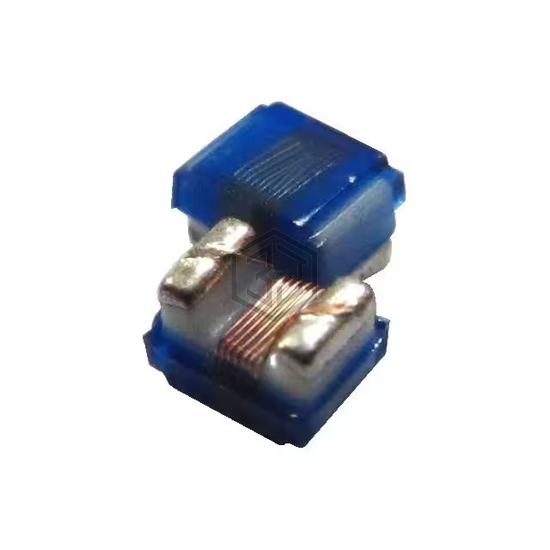

AWCM0011060540NG00 is a Fixed Inductors manufactured by Chilisin Electronics. INDUCTOR RF. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0402 (1005 Metric), current rating (amps) 250 mA.
In Stock: 8,970
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 40 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 250 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 700mOhm Max |
| Q @ Freq | 25 @ 250MHz |
| Frequency - Self Resonant | 3GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.041" L x 0.024" W (1.05mm x 0.60mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
Submit your RFQ for AWCM0011060540NG00 and get a quote within 24 hours.
